Complete your order
Pricing & ordering
Choose your quantity and add this customized configuration to your cart.
$4.59 Each
100+ = $4.09
Product at a glance
Details & specifications
Break strength
6000 lb
Working load limit
2,000 lb
Double Stud L-Track Fitting, Zinc-Yellow

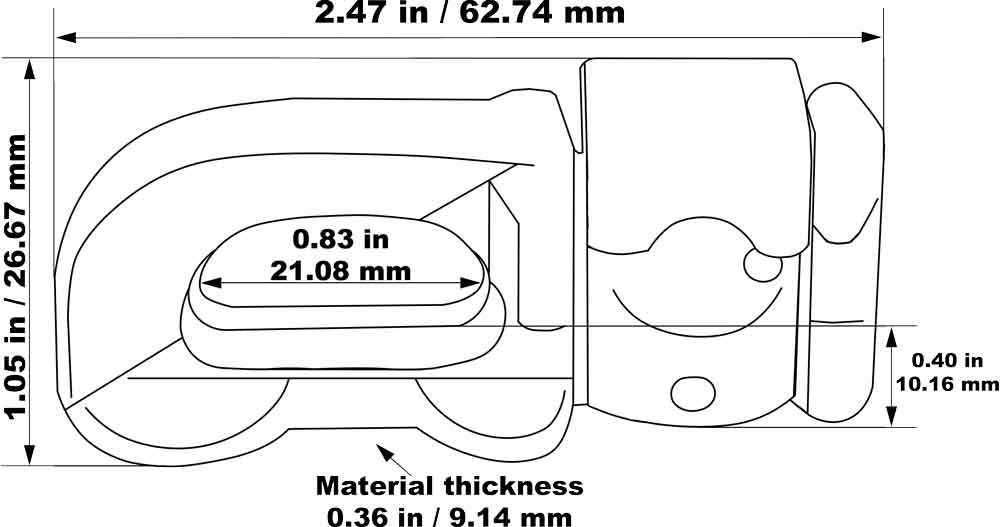

Dimensions
- Product weight: 0.34 lb
Additional details
- Quality Tested
Product notes
- Component Only, Fitting, L-track Fitting, Hardware Only
- Double Stud L Track Fitting Is A Fitting Designed For Use With The L-series Logistic Track
- Double Stud L-track Fittings Have Two Rounded Studs That Engage Into The L-track Slot
- Double Stud L-track Fittings Are Released By Pushing The Tensioning Bar And Removing The Fitting Out Of The Track
- Double Stud Frame Has An Opening As A Location To Sew On A Strap Or Connect A Hook
- Commercial Duty Single Stud L-track Fitting For Great Strength And Durability
- L-track Fitting Is Made Of Steel And Has A Zinc-yellow Plated Finish For Superior Weather Protection
- O-ring Diameter Is Slightly Larger Than 1 Inch
- The Noted Width Refers To The Width Of Strap The Hardware Is Intended To Be Used With
- 0° Vertical Working Load Limit: 2000 Lbs./910 Kgs.
- 60° Pull Angle Working Load Limit: 2,000 Lbs./910 Kgs.
- 90° Horizatonal Pull Angle Working Load Limit: 1,670 Lbs./760 Kgs.
Component specifications
Component strengths
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CFLDS1-6M | Double Stud L-Track Fitting, Zinc-Yellow | 6,000 lb | 2,000 lb |
Safety information
Special warnings
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
