Complete your order
Pricing & ordering
Choose your quantity and add this customized configuration to your cart.
$3.19 Each
100+ = $2.78
Product at a glance
Details & specifications
Break strength
100 lb
Working load limit
33 lb

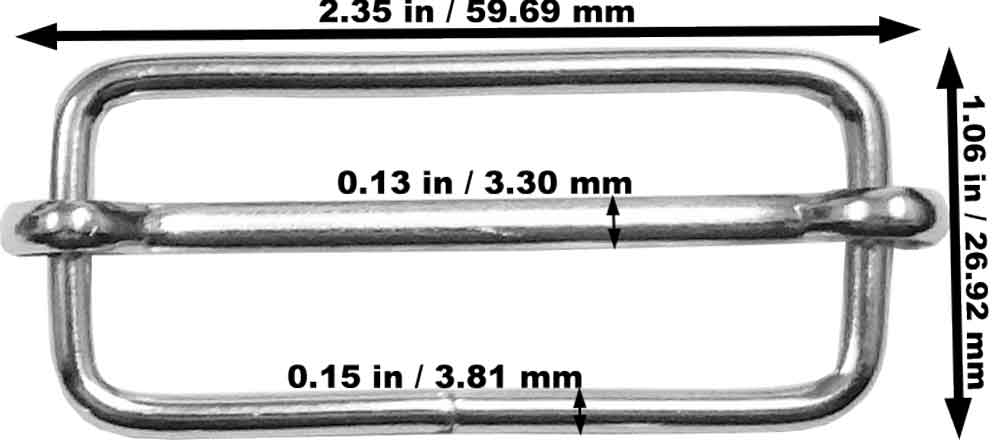

2 Inch 3-Bar Strap Adjuster With Movable Middle Bar, Nickel Plated
Dimensions
- Product weight: 0.08 lb
Additional details
- Quality Tested
Product notes
- Component Only, Fitting, Flat 3-bar Strap Adjuster, Hardware Only
- 3 Bar Slides Are Hardware Fittings That Have A Frame Comprised Of Three Bars And Two Slotted Openings
- 3-Bar Slides Are Also Called Strap Adjusters Because Most Products That Include A 3-bar Slide Use It For Strap Length Adjustment
- 3-Bar Slides Provide Some Holding Strength By Pinching The Strap Against Itself As It Is Fed Through The Slide
- This 3-bar Slide Configuration Has A Sliding Middle Bar For Increased Holding When Under Tension And More Flexibility When Used With Different Strap Thicknesses
- 3-bar Slides Are Sewn Into The Middle Of A Strap Or As An End-fitting
- Proper Feeding Of The Strap Over The Middle Bar Of The 3-bar Slide Is Critical To Generate The Most Holding Power Possible
- Standard Duty 3-bar Strap Adjuster For General Use And Lighter Applications
- 3-bar Strap Adjuster Is Made Of Steel And Has A Nickel Plated Finish (silver)
- Strap Adjuster Openings Are The Standard Size
- The Noted Width Refers To The Width Of Strap The Hardware Is Intended To Be Used With
Component specifications
Component strengths
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CFSAM2N | 2 Inch 3-Bar Strap Adjuster With Movable Middle Bar, Nickel Plated | 100 lb | 33 lb |
Safety information
Special warnings
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
Additional views
Product images
Compare your options
Available Product Variations
There are no additional product variations currently available.
For help finding another option, contact customer service at sales@customtiedowns.com or 1-877-360-5528.
