Complete your order
Pricing & ordering
Choose your quantity and add this customized configuration to your cart.
$1.89 Each
100+ = $1.63
Product at a glance
Details & specifications
Break strength
10000 lb
Working load limit
3,333 lb

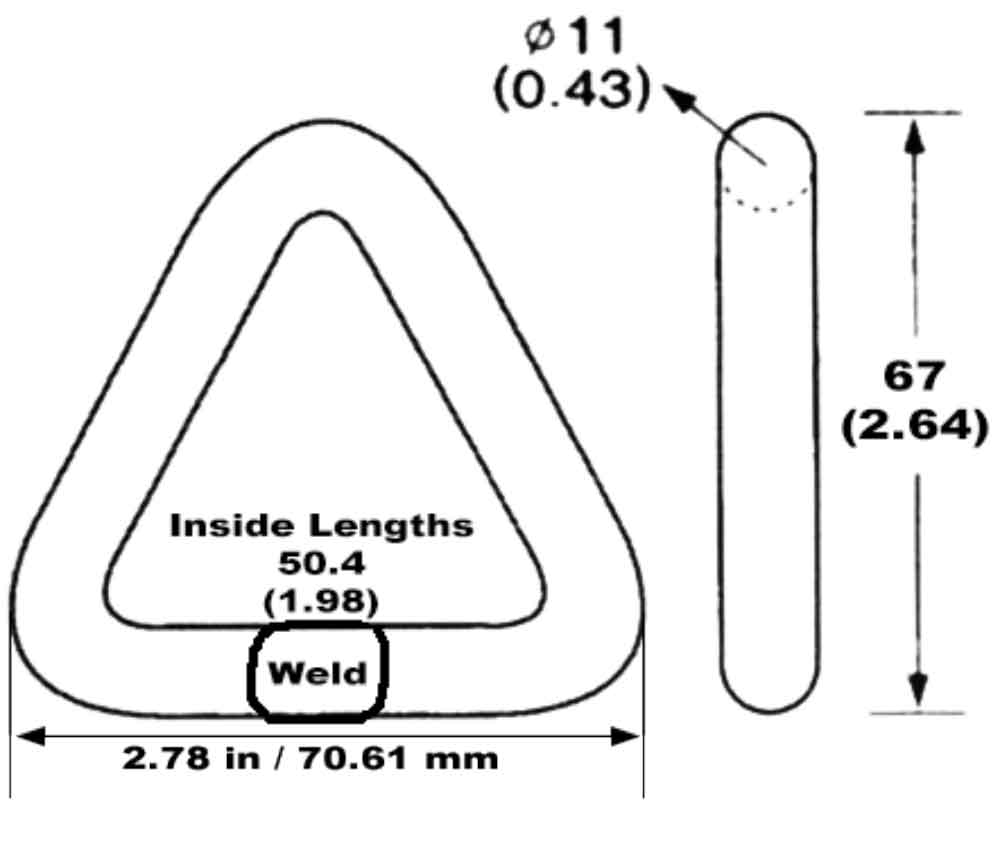

2 Inch Wire Formed Triangular Delta Ring, Zinc-Yellow
Dimensions
- Product weight: 0.35 lb
Additional details
- Quality Tested
Product notes
- Component Only, Ring, Delta Ring
- Delta Rings Are Formed In The Shape Of A Triangle
- Wire Delta Rings Are Made Using A Single Piece Of Wire And Bent Into The Shape Of A Triangle With The Ends Of The Wire Brought Together To Form The Ring
- Delta Rings Are Common In Tie-downs Because A Strap Can Be Sewn To One Flat Side And Triangle Point Can Be Used To Secure The Ring To An Anchor Point
- Heavy Duty Wire Formed Delta Ring For The Highest Strength And Durability
- Delta Ring Is Made Of Steel And Has A Zinc-yellow Plated Finish For Superior Weather Protection
- Delta Ring Is Made With 7/16 Inch Wire And Has A Welded Seem
- The Width Of A Delta Ring Is Noted As The Width Of Webbing The Ring Is Intended To Be Used With
Component specifications
Component strengths
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CHDR2-10M | 2 Inch Wire Formed Triangular Delta Ring, Zinc-Yellow | 10,000 lb | 3,333 lb |
Safety information
Special warnings
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
Additional views
Product images
Products Using This Component
Compare your options
Available Product Variations
There are no additional product variations currently available.
For help finding another option, contact customer service at sales@customtiedowns.com or 1-877-360-5528.
