Details:

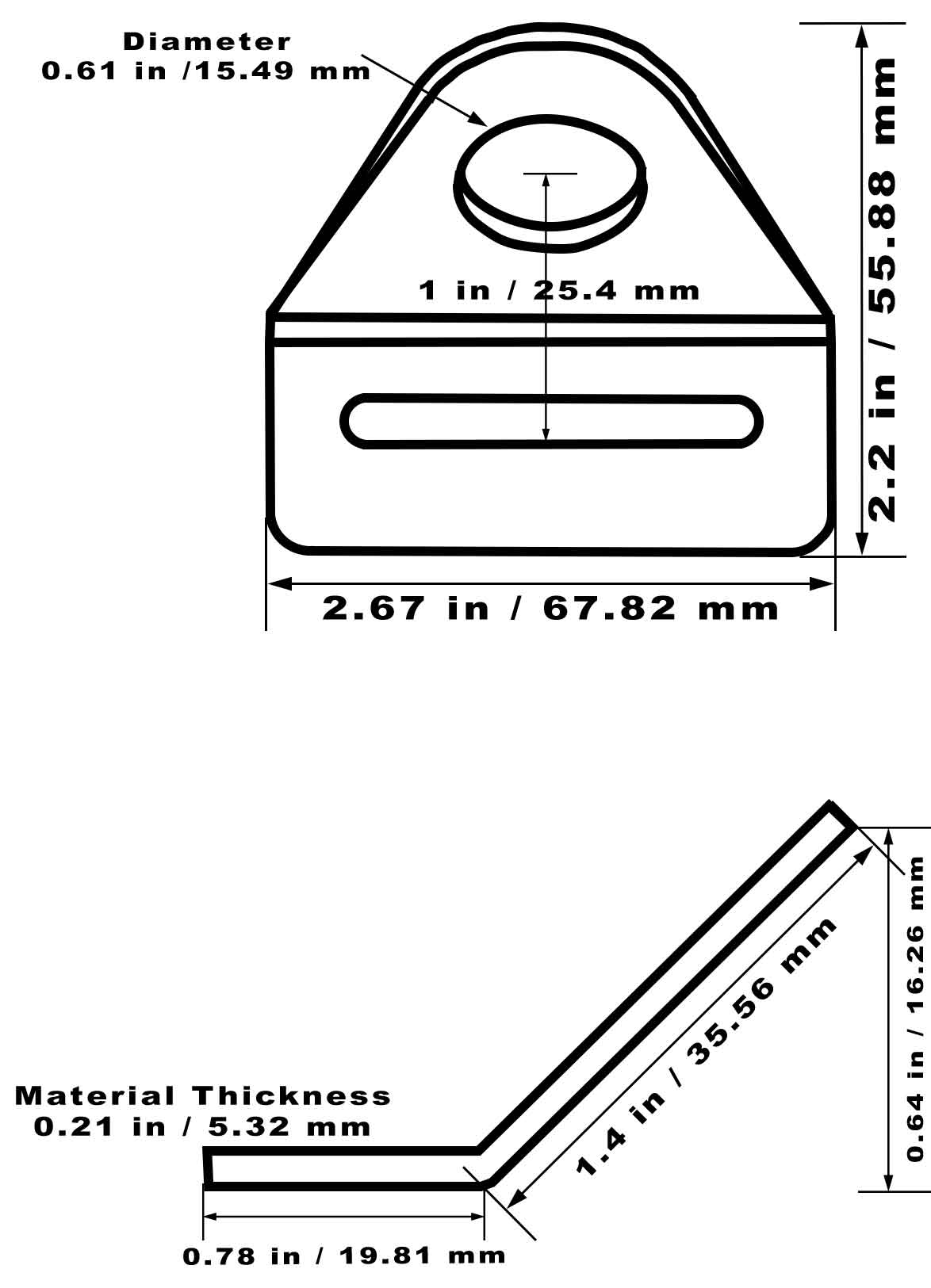

- 2 Inch 10M Angled Bolt Plate, Black Resin Finish
- 10000 lb Break Strength
- 3,333 lb Working Load Limit
- Quality Tested
Product Weight: 0.25 lb
$2.39 Each
100+ = $2.12
This product is a special order item and cant be ordered online. Please contact Customer Service for assistance.
PRODUCT NOTES:
SPECIAL WARNINGS:
- Component Only, Fitting, Bolt Plate, Hardware Only
- Angled Bolt Plates, Also Anchor Plates, Are Strap Fittings Intended To Be Mounted To A Surface
- Bolt Plates Have A Webbing Slot For The Strap To Be Sewn Onto And A Bolt Hole For Mounting With A Fastener
- Angled Bolt Plates Have A Slight Bend In The Frame
- Angled Bolt Plates Are Typically Used For Mounting On Flat Surfaces Which Allows The Bend To Extend The Webbing End Away From The Mounting Surface
- Heavy Duty Bolt Plate For The Highest Strength And Durability
- Bolt Plate Is Made Of Steel And Has A Black Resin Finish
- Bolt Plate Bolt Hole Is Designed To Be Used With Up To A 1/2 (0.50) Inch Bolt
- The Noted Width Refers To The Width Of Strap The Bolt Plate Is Designed For, Not The Width Of The Plate Or Bolt Hole
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CFBP2K-10M | 2 Inch 10M Angled Bolt Plate, Black Resin Finish | 10,000 lb | 3,333 lb |
-
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
Available Product Variations
There are no additional product variations currently available.
For help finding another option, contact customer service at sales@customtiedowns.com or 1-877-360-5528.
