Product assembly
See how it comes together
A visual breakdown of the components in this configuration.
Complete your order
Pricing & ordering
Choose your quantity and add this customized configuration to your cart.
$11.19 Each
10+ = $10.08
50+ = $9.09
Product at a glance
Details & specifications
Break strength
1500 lb
Working load limit
500 lb
Dimensions
- Product weight: 0.71 lb
- Total Strap Length 12 Ft
Additional details
- Made in the USA
Product notes

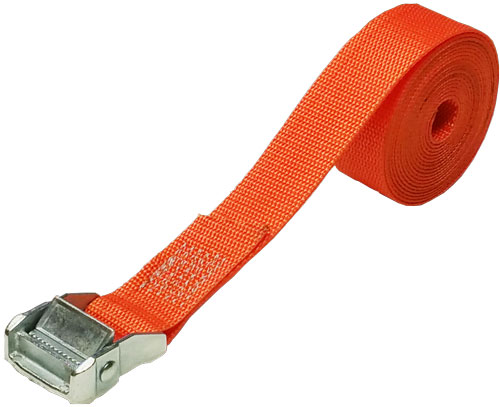

- Tie-downs, Cam Buckle Tie-down, Buckle On One End, Strap Loops Back To Buckle
- Endless Loop Configuration Is Made With A Single Strap That Is Sewn To The Back Of The Buckle. The Strap Is Then Wrapped Around The Cargo And The Loose End Is Fed Back Thru The Buckle. There Are No Hooks, The Strap Just Makes A Loop When Tightened
- Cam Buckles Have No Built In Mechanical Tightening System, They Are Pulled Tight By Hand
- End Of The Strap Is Angle Cut To Make Feeding The Strap Thru The Buckle Easier
- Cinch Style Buckle Has The Cinch Cambuckle Configuration Where The Strap Is Fed Bottom Of Buckle Thru Top Of Buckle And Pulled Tight
- Cinch Cam Buckle Is Made From Zinc-Diecast Metal And Has A Zinc-silver Finish. Zinc-Diecast Buckles Are Rust Proof
- Strap Is Made With 4500 Lb Polyester Tie-down Webbing
- Sewn With Silver Polyester Thread
- Strap Length Measured As The Webbing Portion Only, The Buckle Is Not Included In The Measurement
- Sewn In The Standard Method To Meet The Provided Strength Rating
- CustomTieDowns Strap Warning Tag Sewn On The Strap Next To The Buckle
Component specifications
Component strengths
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CS15-O12-STOCK | 1,500 lb | 500 lb |
Safety information
Special warnings
- Cinch Style Cam Buckles Require That The Strap Be Fed Through The Teeth From Bottom To Top In Order To Properly Hold The Strap After Tightening. NEVER Load The Strap Through The Cam Teeth From Top To Bottom, It Will Not Hold To The Proper Strength
Additional views
Product images
Compare your options
Available Product Variations
Browse the default product for each available product type in this family. Color, length, and material can be adjusted on the product page.
