Product at a glance
Details & specifications
Break strength
1500 lb
Working load limit
500 lb

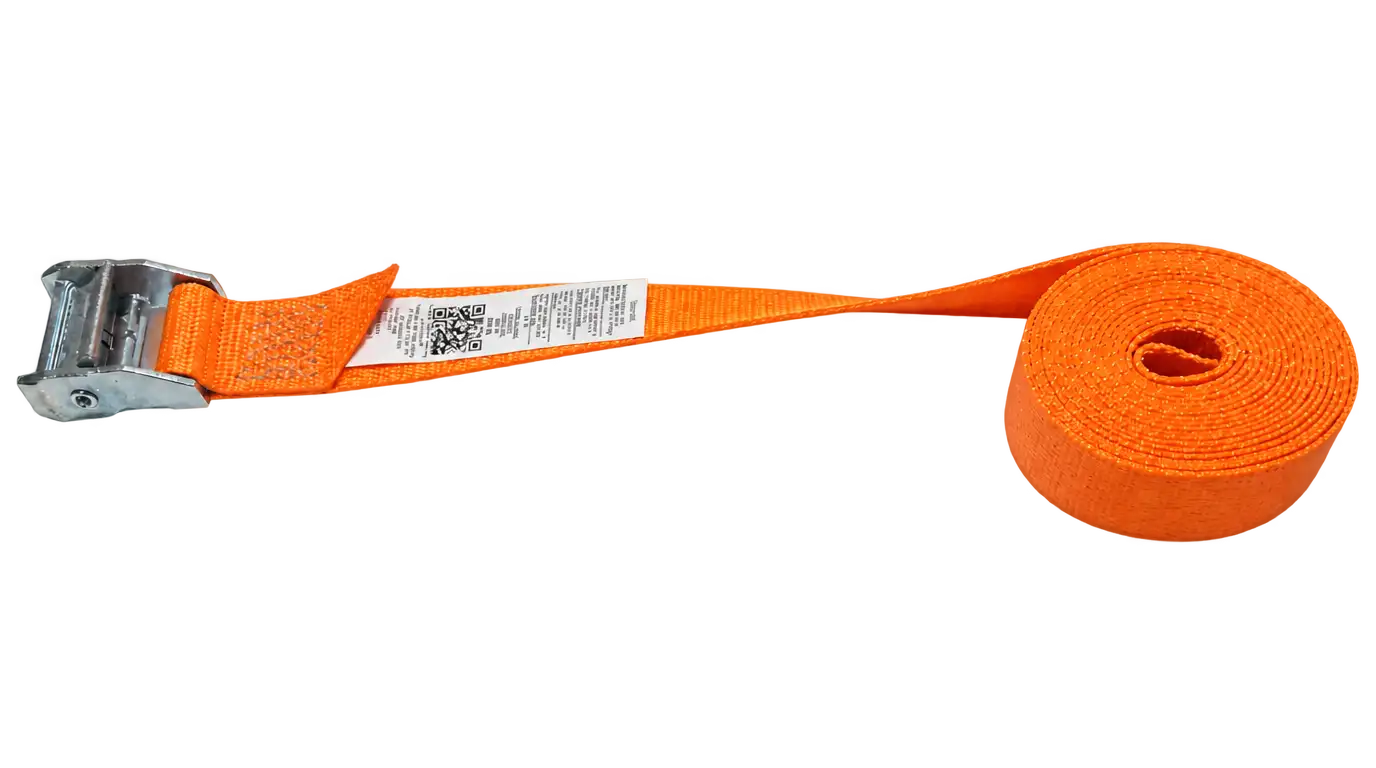

1.5 Inch Cinch-Strap Endless Loop Tie Down, CS15-1M Zinc Diecast Cam Buckle, Endless Loop (No Hooks), Total Strap Length 12 Ft, CW15-O4PE Orange Polyester Tie-down Webbing, Assembled In The USA
Components & materials
- CS15-1M 1.5 Inch Cinch Cam Buckle, Zinc-silver
- CW15-O4PEM 1.5 Inch 4M Orange Polyester Tie-Down Webbing
Dimensions
- Product weight: 0.71 lb
- Total Strap Length 12 Ft
Product notes
- Tie-downs, Cam Buckle Tie-down, Buckle On One End, Strap Loops Back To Buckle
- Endless Loop Configuration Is Made With A Single Strap That Is Sewn To The Back Of The Buckle. The Strap Is Then Wrapped Around The Cargo And The Loose End Is Fed Back Thru The Buckle. There Are No Hooks, The Strap Just Makes A Loop When Tightened
- Cam Buckles Have No Built In Mechanical Tightening System, They Are Pulled Tight By Hand
- This Tie-down Is Made With A Cinch Style Cam Buckle, Which Means The Loose End Of The Strap Must Be Fed Through The Teeth From Bottom To Top For Proper Operation
- End Of The Strap Is Angle Cut To Make Feeding The Strap Thru The Buckle Easier
- Commercial Duty Cam Buckle For Great Strength And Durability
- Cinch Cam Buckle Is Made From Zinc-Diecast Metal And Has A Zinc-silver Finish. Zinc-Diecast Buckles Are Rust Proof
- Strap Is Made With 4500 Lb Polyester Tie-down Webbing
- Sewn With Silver Polyester Thread
- Strap Lengths Are Measured As The Webbing Only, The Buckle Is Not Included In The Length
- Sewn In The Standard Method To Meet The Provided Strength Rating
- CTD Strap Warning Tag Sewn On The Strap Next To The Buckle
Component specifications
Component strengths
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CW15-O4PEM | 1.5 Inch 4M Orange Polyester Tie-Down Webbing | 4,500 lb | 1,500 lb |
| CS15-1M | 1.5 Inch Cinch Cam Buckle, Zinc-silver | 1,500 lb | 500 lb |
Safety information
Special warnings
- Cinch Style Cam Buckles Require That The Strap Be Fed Through The Teeth From Bottom To Top In Order To Properly Hold The Strap After Tightening. NEVER Load The Strap Through The Cam Teeth From Top To Bottom, It Will Not Hold To The Proper Strength
