Complete your order
Pricing & ordering
Choose your quantity and add this customized configuration to your cart.
$15.99 Each
20+ = $14.51
100+ = $13.09
Product at a glance
Details & specifications
Break strength
2250 lb
Working load limit
750 lb
5/16 Inch Asymmetrical Stainless Steel Harness Clip, 316SS
Dimensions
- Product weight: 0.15 lb
Additional details
- Quality Tested
Product notes
- Component Only, Hook, Harness Clip
- Asymmetrical Harness Clips Have A Combination Rounded And Squared Off Large End
- Harness Clips Have A Gate Or Retainer Clip That Opens And Closes
- When Clipped, The Retainer Clip Prevents The Harness Clip From Unintentionally Disconnecting
- The Closed Eye Of The Harness Clip Is Designed To Have A Rope Or Strap Fed Through

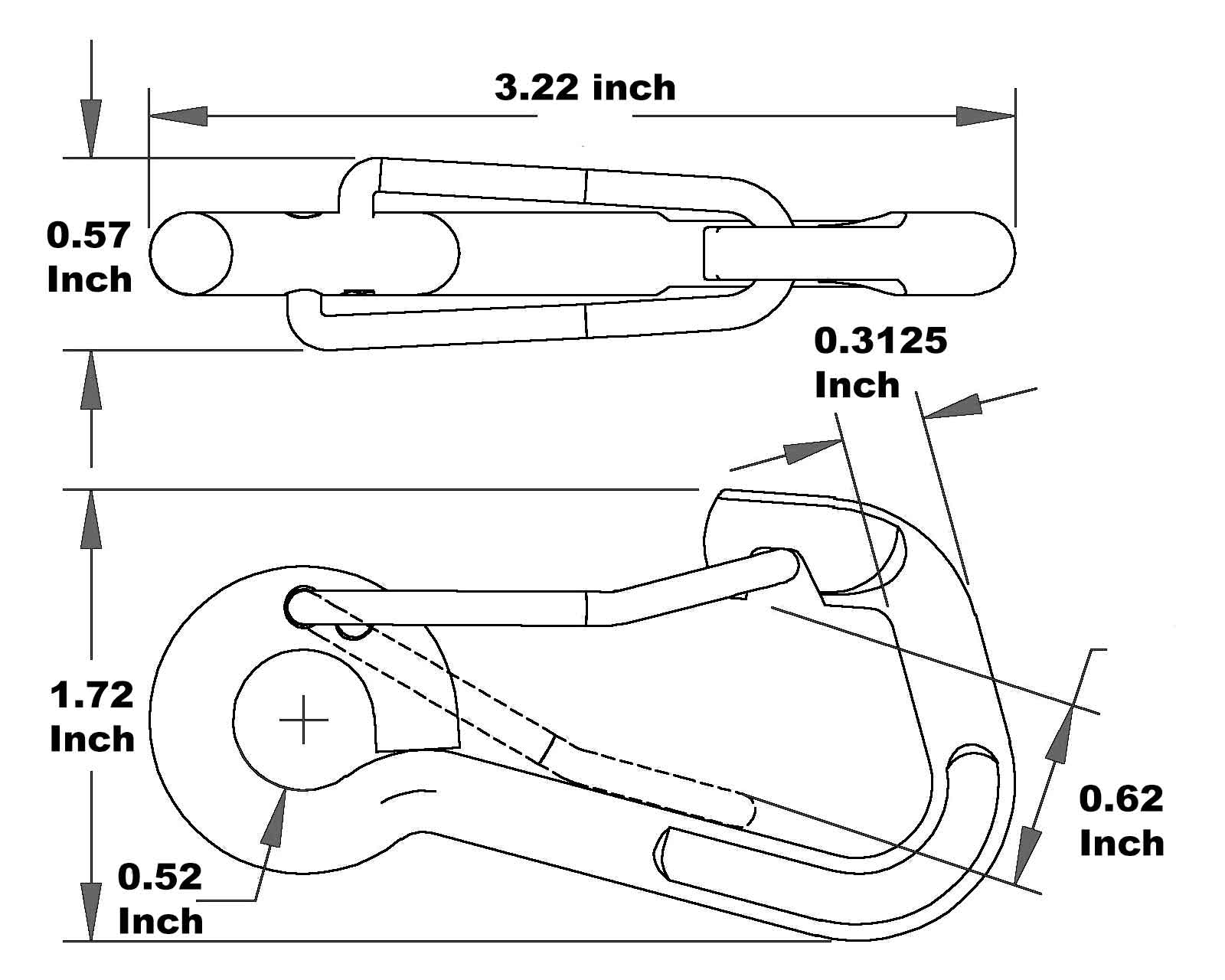

- Harness Clip Is Made Out Of 5/16 Inch Thick Material And Has An Overall Length Of 3-1/4 Inches
- Harness Clip Is Made Of 316 Grade Stainless Steel For The Highest Corrosion Resistance
- Harness Clip Sizes Are Noted By The Material Thickness And Overall Length
Component specifications
Component strengths
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CHHCA516S-1M-316 | 5/16 Inch Asymmetrical Stainless Steel Harness Clip, 316SS | 2,250 lb | 750 lb |
Safety information
Special warnings
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
Additional views
Product images
Compare your options
Available Product Variations
There are no additional product variations currently available.
For help finding another option, contact customer service at sales@customtiedowns.com or 1-877-360-5528.
