Complete your order
Pricing & ordering
Choose your quantity and add this customized configuration to your cart.
$10.89 Each
30+ = $9.83
Product at a glance
Details & specifications
Break strength
20000 lb
Working load limit
6,667 lb

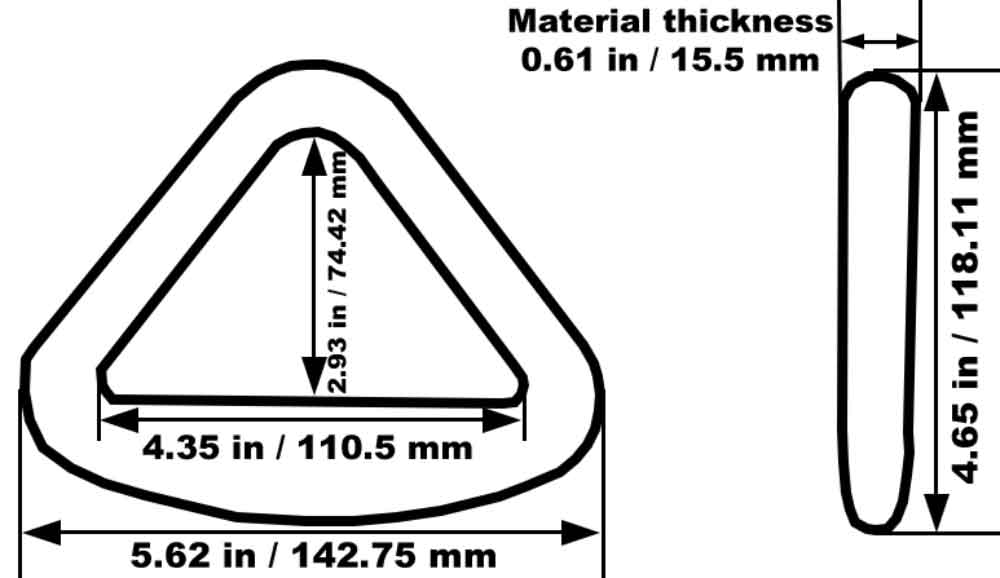

4 Inch Forged Delta Ring, Zinc-Yellow
Dimensions
- Product weight: 1.45 lb
Additional details
- Quality Tested
Product notes
- Component Only, Ring, Delta Ring
- No-seam Delta Rings Are Rings In The Shape Of A Triangle That Are Molded, Cast Or Forged Into Shape And Have No Seam In The Material
- Delta Rings Are Common In Tie-downs Because A Strap Can Be Sewn To One Flat Side And Triangle Point Can Be Used To Secure The Ring To An Anchor Point
- Heavy Duty Forged Delta Ring For The Highest Strength And Durability
- Delta Ring Is Made Of Steel And Has A Zinc-yellow Plated Finish For Superior Weather Protection
- Delta Ring Is Formed With One Side That Is Thicker Where The Webbing Is Intended To Be Sewn
- The Width Of A Delta Ring Is Noted As The Width Of Webbing The Ring Is Intended To Be Used With
Component specifications
Component strengths
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CHD4-20M | 4 Inch Forged Delta Ring, Zinc-Yellow | 20,000 lb | 6,667 lb |
Safety information
Special warnings
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
