Product assembly
See how it comes together
A visual breakdown of the components in this configuration.
Complete your order
Pricing & ordering
Choose your quantity and add this customized configuration to your cart.
$22.79 Each
10+ = $20.66
50+ = $18.64
Product at a glance
Details & specifications
Break strength
4000 lb
Working load limit
1,333 lb

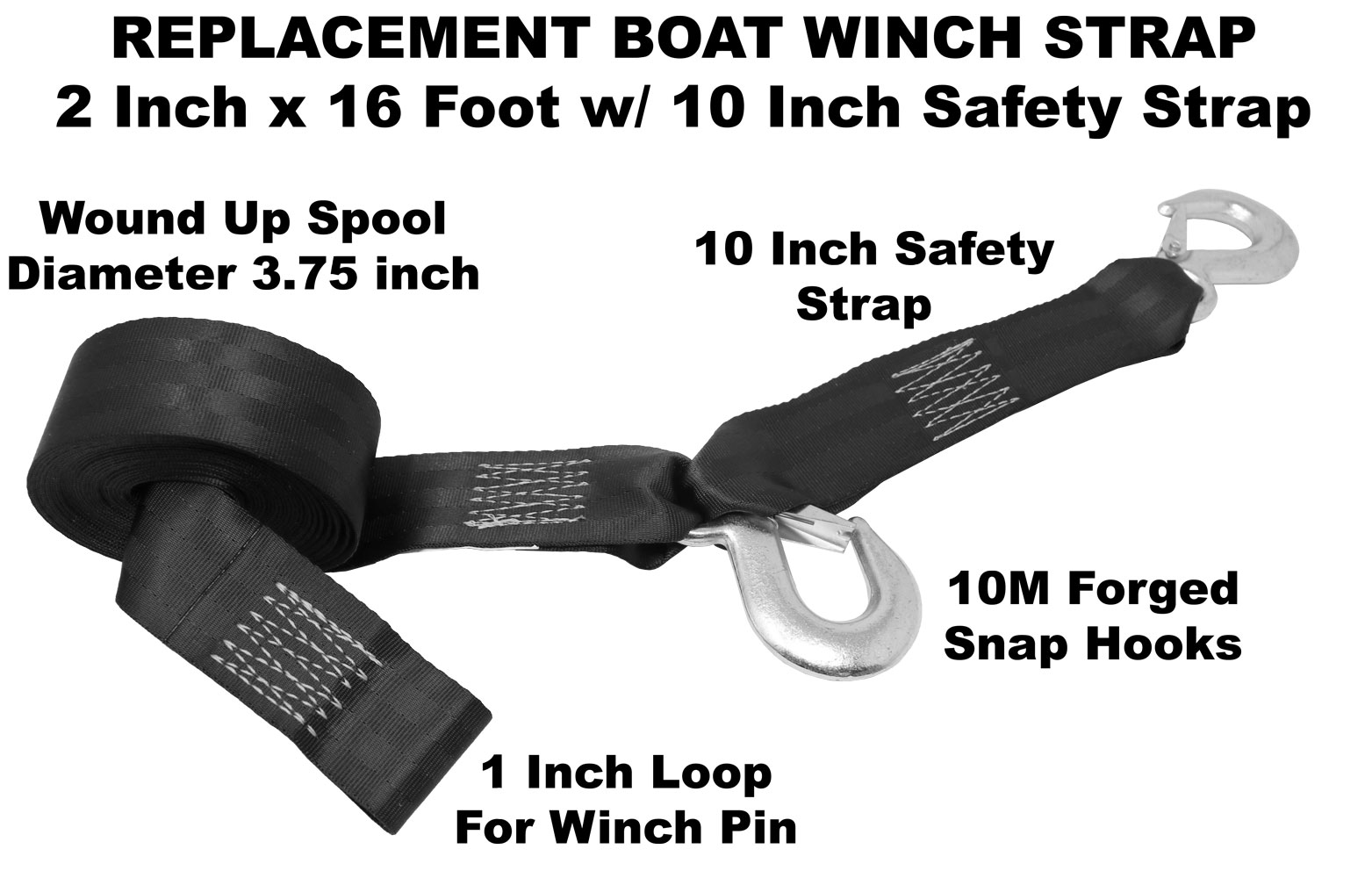

2 Inch Boat Winch Strap
Components & materials
- 1 Inch flat sew loop on one end, CHTH-10M Forged Snap Hook with 10 inch snap hook safety strap on the opposite end
- CW2-K6SB 2 Inch 6M Black 5-Panel Polyester Seatbelt Style Webbing
Dimensions
- Product weight: 2.04 lb
- Total Strap Length 16 Ft
Product notes
- Tie-downs, Boat Winch Strap, Flat Sewn Loop On One End, Snap Hook On Opposite End, Safety Strap With Snap Hook Extending From First Hook
- Boat Winch Strap Configuration With Safety Strap, Loop On One End, Forged Eye Snap Hook And Safety Strap With A Forged Eye Snap Hook
- Safety Strap Is 10 Inches Long, Not Including The Hook
- 1 Inch Flat Loop On Opposite End Of Strap Is For Attachment To Pin Inside Boat Winch. 1 Inch Flat Loop Can Fit Over A 1/2 Inch (0.50) Inch Diameter Pin
- Snap Hooks Have A Spring Loaded Keeper To Prevent Unintentional Disconnects After Attachment
- 10M Forged Snap Hook Is The Heavy Duty Version For The Highest Strength Or Durability
- Snap Hooks Are Made Of Steel And Have A Zinc-silver Plated Finish
- Strap Is Made With 6000 Lb Seatbelt Style Polyester Webbing. Webbing Nominal Thickness Is 0.049 Inch (1.2mm)
- Sewn With Silver Polyester Thread
- Strap Length Is Measured As The Webbing Portion Only Including The Flat Sewn Loop, The Hooks Are Not Included In The Measurement
- Sewn In The Standard Method To Meet Provided Strength Rating
- CustomTieDowns Strap Warning Tag Sewn Into The Strap Next To The Primary Hook
- Strap Has A Spool Diameter Of 3.75 Inches When Completely Wound Up
Component specifications
Component strengths
Safety information
Special warnings
- If Winding This Strap In A Boat Winch, Check That The Combination Of Strap Length And Webbing Thickness Will Fit In The Boat Winch When Wound Up
