PRODUCT NUMBER: 8164

PRODUCT MODEL: 8164-O0.67
Custom built for you

Built your way.

Choose an option to tailor this product to your needs.

Your selections update this product before you add it to cart.
Custom built for you

Built your way.

Choose an option to tailor this product to your needs.

Your selections update this product before you add it to cart.
×

To change strap color, TAP the webbing color

4 Inch 20M Polyester Tie-Down Webbing


CW4K-B20PE
Blue Made in USA

CW4K-BD20PE
Dark Blue Made in USA

CW4K-E20PE
Green Made in USA

CW4K-G20PE
Gray Made in USA

CW4K-K20PE
Black Made in USA

CW4K-RD20PE
Dark Red Made in USA

CW4K-Y20PE
Yellow Made in USA
×

Customize Strap Length For Product 8164


Product assembly

See how it comes together

A visual breakdown of the components in this configuration.


8164-O0.67

Complete your order

Pricing & ordering

Choose your quantity and add this customized configuration to your cart.

$10.69 Per Strap
20+ = $9.69
50+ = $8.77

Product at a glance

Details & specifications

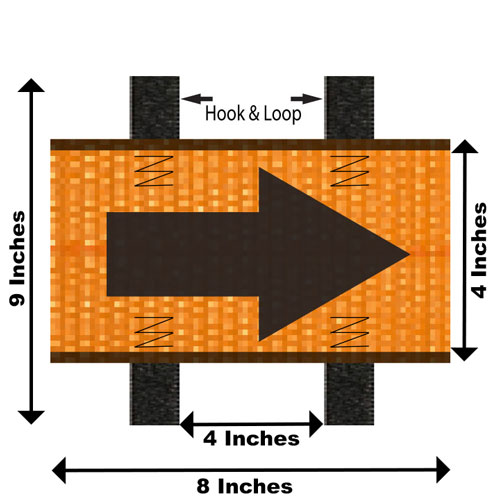

4 Inch Attachable Strap

Components & materials

  • strap cut to length, two sewn-on 9 inch long parallel hook and loop straps
  • CW4K-O20PE 4 Inch 20M Orange Polyester Tie-Down Webbing With Black Edges

Dimensions

  • Product weight: 0.11 lb
  • Total Strap Length 0.67 Ft (8 Inches)

Additional details

  • Direct Imprinted, BLACK ARROW, 1 Time
  • No Strap Tag, Black Thread
  • Made in the USA
Product notes
  • Specialty Straps, Hook And Loop Tie-down, D-ring On Each End
  • Attachable Strap Configuration, Strap Cut To Length With Sewn On Fasteners So It Can Be Attached To Another Article
  • The Strap Is Cut To Length, Then Two Parallel Hook And Loop Straps Are Sewn To The Back Of The Strap
  • The Hook And Loop Straps Have Both Hook And Loop Material, So They Are Wrapped Around Something And Adhere To Themselves
  • 20000 Lb Polyester Tie-down Webbing Is Commonly Used In Tie-downs Because Of Its Superior Strength, UV Resistance And Abrasion Resistance, Along With Limited Stretch
  • Webbing Has A Single Continuous Woven-in Marker Line Down The Middle
  • Webbing Has A Black Edge On Both Edges
  • The Tie-down Weave Has A More Aggressive Texture. It Tends To Be Rougher And Stiffer Than Flat Weave Alternatives. The Weave Pattern Makes It Effective In Tie-downs Because The Buckle Can Grip The Weave Pattern Easier
  • Sewn With Black Polyester Thread
  • Strap Length Is Measured As The Webbing Portion Only
  • Sewn With A Small 1 Inch Tie-down Stitch
  • No Strap Tag Or Labeling On The Product
  • Black Hook And Loop Material
Component specifications

Component strengths

Model Component Break Strength WLL
CW4K-O20PE 4 Inch 20M Orange Polyester Tie-Down Webbing With Black Edges 20,000 lb 6,667 lb
Safety information

Special warnings

There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.

Compare your options

Available Product Variations

There are no additional product variations currently available.

For help finding another option, contact customer service at sales@customtiedowns.com or 1-877-360-5528.
