Complete your order
Pricing & ordering
Choose your quantity and add this customized configuration to your cart.
$9.49 Each
10+ = $8.52
50+ = $7.69
Product at a glance
Details & specifications
Break strength
1500 lb
Working load limit
500 lb
1 Inch Ratchet Fixed End
Components & materials
- CHSRC1V-1M Vinyl Coated S Hook on one end
- CW1-Y3PE 1 Inch 3M Yellow Polyester Tie-Down Webbing
Dimensions
- Product weight: 0.75 lb
- Total Strap Length 1 Ft (12 Inches)
Product notes
- Tie-downs, Ratchet Fixed End, S Hook With Retainer Clip On One End
- Ratchet Fixed End Configuration, Only Includes The Fixed Side Of A Ratchet Strap, Does Not Include The Adjustable Strap
- Ratchet Fixed Ends Are Typically Purchased As A Replacement, Rather Than Having To Purchase The Entire Ratchet Strap
- S Hook With Retainer Clip Sewn On The End Of The Strap
- Retainer Clip On The S Hook Allows The Hook To Be Clipped On An Anchor Point And Helps Prevent The Hook For Unintentional Disconnects
- Commercial Grade Ratchet Provides Great Strength And Durability
- Ratchet Is Made Of Steel And Has A Black Resin Finish
- Ratchet Has The Standard Single Locking Configuration
- Ratchet Has A Thumb Style Handle, The Most Compact Ratchet And Handle Available
- S Hook Is The Commercial Grade Version For Great Strength And Durability
- S Hook Is Made Of Steel And Has A Vinyl Coated Finish To Help Prevent The Hook From Scratching Its Surroundings. Retainer Clip Is Made Of Steel And Has A Zinc-silver Plated Finish

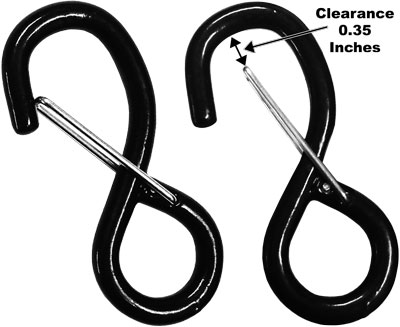

- The Retainer Clip Reduces The S Hook Opening To 0.30 Inch When The Retainer Clip Is At Its Lowest Point
- Strap Is Made With 3000 Lb Polyester Tie-down Webbing
- Sewn With Silver Polyester Thread
- Strap Length Is Measured As Only The Webbing Portion, The Buckle And Hook Are Not Included In The Measurement
- Sewn In The Standard Method To Meet The Provided Strength Rating
- CustomTieDowns Strap Warning Tag Sewn Next To The S Hook
Component specifications
Component strengths
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CW1-Y3PE | 1 Inch 3M Yellow Polyester Tie-Down Webbing | 3,000 lb | 1,000 lb |
| CHSRC1V-1M | 1 Inch 1M S Hook With Retainer Clip, Black Vinyl Coated | 1,500 lb | 500 lb |
| CR1K-1M | 1 Inch Black Ratchet With Standard Handle | 1,500 lb | 500 lb |
Safety information
Special warnings
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
