Product at a glance
Details & specifications
Break strength
16200 lb
Working load limit
5,400 lb
4 Inch Ratchet Strap
Components & materials
- Black Thread, Black Protective Sleeve Sewn Next To The Hook On Each End
- Black CHFA4K-16M Flat Hook with Abrasion Clip, hook facing down, on each end
- CW4K-Y20PE 4 Inch 20M Yellow Polyester Tie-Down Webbing With Black Edges
Dimensions
- Product weight: 14.29 lb
- Fixed End 2 Ft (24 Inches)
- Adjustable Strap 26 Ft
- Total Strap Length 28 Ft
Additional details
- CR4-24M 4 Inch 24M Ratchet With Long Wide Handle Aluminum Grip
Product notes
- Tie-downs, Ratchet Strap, Flat Hook On Both Ends
- Two Part Ratchet Strap, Made Up Of A Fixed End And Adjustable Strap. Adjustable Strap Is Separate From The Buckle Side And Is Fed Thru The Ratchet Spindle And Tightened During Use
- Flat Hook On The End Of Both The Fixed End Strap And Adjustable Strap
- Flat Hooks Are Orientated, Hook Facing Down, Relative To The Buckle Laying Flat
- Protective Sleeve Sewn On The Strap Next To The Hook On Each End To Help Prevent Premature Wear At The Fold-stitched Area
- Heavy Duty Ratchet For The Highest Strength And Durability
- Ratchet Is Made Of Steel And Has A Zinc-yellow Plated Finish For Superior Weather Protection
- Ratchet Has A Standard Single Locking Configuration For The Easiest Ratcheting Operation
- Ratchet Has A Long Wide Handle For The Greatest Leverage And Ease Of Use While Wearing Gloves
- Ratchet Handle Grip Is Made Of Aluminum
- Heavy Duty Flat Hook For The Highest Strength And Durability
- Flat Hooks Are Made Of Steel And Have A Black Resin Finish
- Flat Hook Has A Built In Abrasion Clip, Commonly Called A Defender, To Help Prevent The Strap From Prematurely Wearing At The Hook
- Strap Is Made With Heavy Duty 20000 Lb Polyester Tie-down Webbing

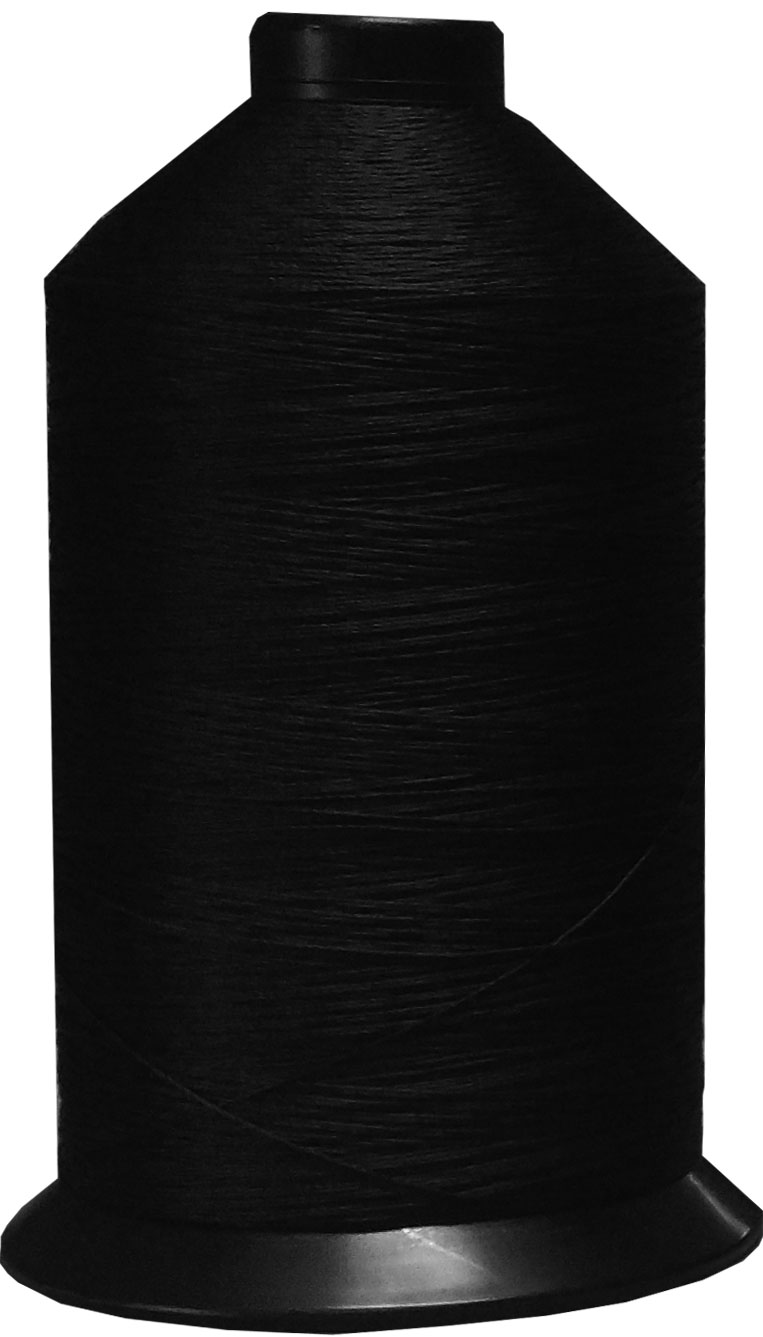

- Sewn With Black Polyester Thread
- Strap Lengths Are Measured As Only The Webbing Portion, Buckle And Hooks Are Not Included In The Measurement
- Sewn In The Standard Method To Meet Provided Strength Rating
- Pro Sleeve At Each End Are 12 Inches Long
- CustomTieDowns Strap Warning Tag Sewn On The Hook End Of Both The Fixed End And Adjustable Strap
- Black Protective Sleeve Material Is Made Of Highly Abrasion Resistant Tubular Nylon
Component specifications
Component strengths
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CW4K-Y20PE | 4 Inch 20M Yellow Polyester Tie-Down Webbing With Black Edges | 20,000 lb | 6,667 lb |
| CHFA4K-16M | 4 Inch 16M Flat Hook With Abrasion Clip, Black | 16,200 lb | 5,400 lb |
| CR4-24M | 4 Inch 24M Ratchet With Long Wide Handle Aluminum Grip | 24,000 lb | 8,000 lb |
Safety information
Special warnings
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
