PRODUCT NUMBER: 13764

PRODUCT MODEL: 13764-O7.083-1.083
Custom built for you

Built your way.

Choose an option to tailor this product to your needs.

Your selections update this product before you add it to cart.
Custom built for you

Built your way.

Choose an option to tailor this product to your needs.

Your selections update this product before you add it to cart.
×

Custom Imprinting For Product 13764

There was a problem preparing the imprint product. Please contact customer service for assistance.

Complete your order

Pricing & ordering

Choose your quantity and add this customized configuration to your cart.

$28.89 Each
10+ = $26.23
50+ = $23.67

Product at a glance

Details & specifications

Break strength 1500 lb
Working load limit 500 lb

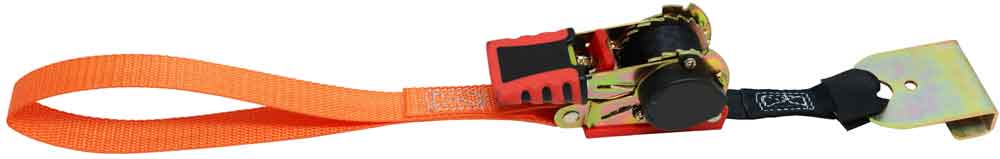

1 Inch Retractable Ratchet Strap

Components & materials

  • Custom Printed, ON TOP SAFETY LOGO, Strap Tag, Orange Polyester Webbing On Fixed End
  • 9 inch flat sew loop on fixed end, Wide Opening Flat hook, hook facing down, on adjustable strap end with pro sleeve around sewing fold

Dimensions

  • Product weight: 2.17 lb
  • Fixed End 1.083 Ft (13 Inches)
  • Adjustable Strap 6 Ft
  • Total Strap Length 7.083 Ft (85 Inches)
Assembled in the USA
Product notes
  • Tie-downs, Retractable Ratchet Strap, Flat Sewn Loop On One End, Flat Hook On The Opposite End
  • Retractable Ratchet Strap Configuration With A Fixed End Strap Connected To The Back Of The Buckle And An Adjustable Strap Wound Up And Contained In The Ratchet Buckle
  • The Adjustable Strap Is Contained In The Retractable Mechanism Until It Is Pulled Out To The Desired Length
  • 9 Inch Flat Sewn Loop Sewn On The Fixed End Of The Tie-down
  • 9 Inch Flat Sewn Loops Are Formed By Folding The Webbing Flat Over Onto Itself, The Loop Has No Twisting, Pinching Or Narrowing
  • 9 Inch Loop Has A Circumference Of 18 Inches And Can Fit Over A 5.5 Inch Diameter Bar

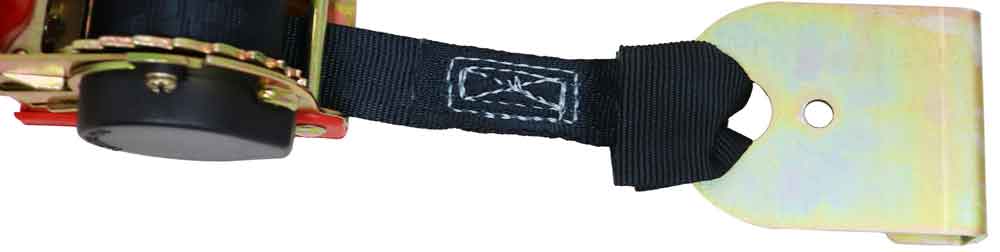

  • Flat Hook Sewn On The End Of The Adjustable Strap Is Orientated, Hook Facing Down, Relative To The Buckle Laying Flat
  • Pro Sleeve Around The Webbing Where The Flat Hook Is Sewn On To Help Prevent Wear
  • Commercial Duty Ratchet Provides Great Strength And Durability
  • Ratchet Is Made Of Steel And Has A Zinc-yellow Plated Finish. The Ratchet Has A Red Plastic Base And A Black Plastic Cover Over The Retractable Mechanism
  • Ratchet Has A Standard Retractable Locking Mechanism
  • Ratchet Has A Thumb Style Handle With Black/red Comfort Grip

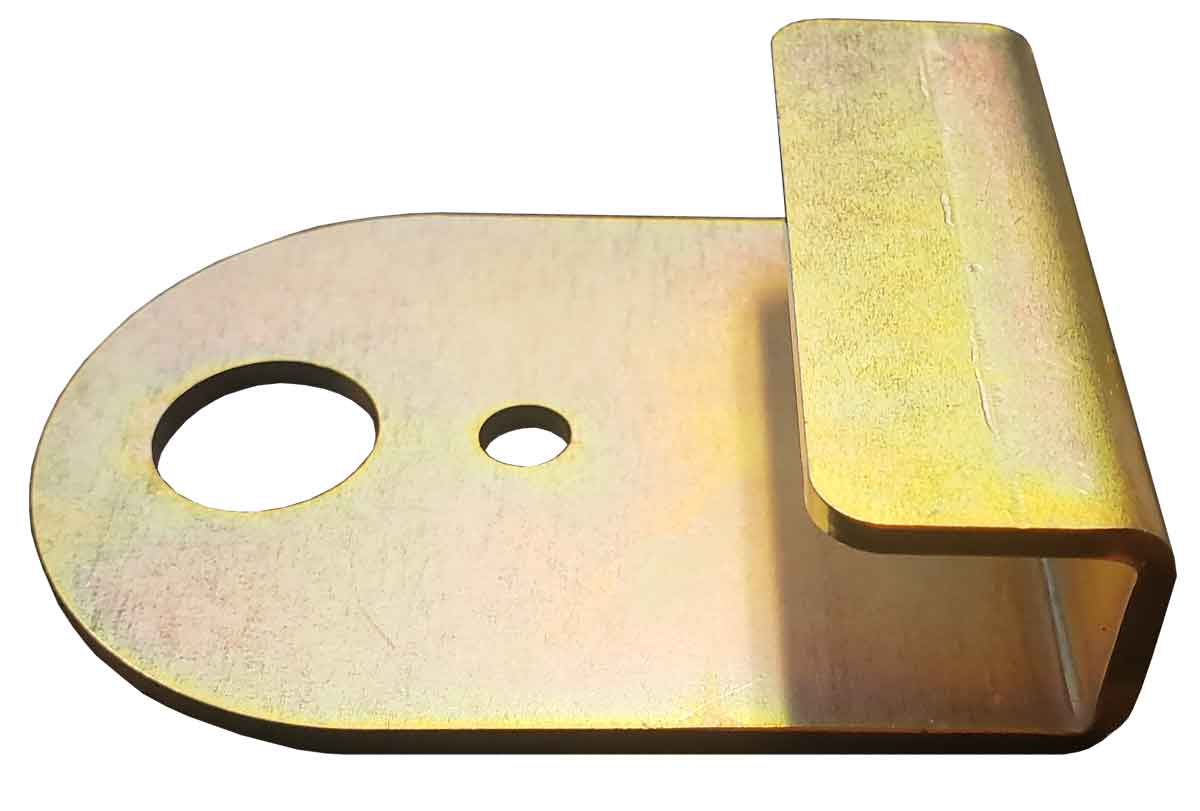

  • Heavy Duty Flat Hook Provides The Highest Strength And Durability
  • Flat Hook Is Made Of Steel And Has A Zinc-yellow Plated Finish For Superior Weather Protection
  • Flat Hook Has A Wide Opening
  • Adjustable Strap Is Made With 1800 Lb Polyester Seatbelt Style Webbing
  • Sewn With Silver Polyester Thread
  • The Fixed End Length Is Measured From The Back Of The Buckle To Tip Of The Sewn Loop. The Adjustable Strap Length Is Measured From The Back Of The Buckle To The Tip Of The Flat Hook When The Strap Is Fully Extended From The Buckle
  • Sewn In The Standard Method To Meet The Provided Strength Rating
  • Custom Strap Warning Tag With Customers Printed Information Sewn On The Adjustable Strap Next To The S Hook
  • Fixed End Strap Is Made With 3000 Lb Polyester Tie-down Webbing
Component specifications

Component strengths

Model Component Break Strength WLL
1409 1 Inch Retractable Ratchet Strap 1,500 lb 500 lb
CW1-O3PE 1 Inch 3M Orange Polyester Tie-Down Webbing 3,000 lb 1,000 lb
CHFRS2-2M 2 Inch 2M Flat Hook, Zinc-Yellow 2,000 lb 667 lb
