Product assembly
See how it comes together
A visual breakdown of the components in this configuration.
Complete your order
Pricing & ordering
Choose your quantity and add this customized configuration to your cart.
$9.89 Each
10+ = $8.93
50+ = $8.06
Product at a glance
Details & specifications
Break strength
240 lb
Working load limit
80 lb
1.5 Inch Endless Loop Spring Buckle Tie Down
Components & materials
- CSB15S-3C 1.5 Inch Stainless Steel Spring Buckle
- Endless Loop (No Hooks), strap end Angle Cut
- CW15-K12PP 1.5 Inch Heavyweight Black Polypropylene Webbing
Dimensions
- Product weight: 0.21 lb
- Total Strap Length 2.33 Ft (28 Inches)
Additional details
- #2 Brass Grommet Installed After Stitch, No Strap Tag
Product notes
- Tie-downs, Spring Buckle Tie-down, Buckle On One End, Strap Loops Back To Buckle
- Endless Loop Spring Buckle Tie-Down Configu Ration, Strap Sewn To The Back Of The Buckle, It Has No Hooks
- To Use The Endless Loop Tie-down, Wrap The Strap Around The Cargo, Feed The Strap From Bottom To Top Through The Buckle And Pull Tight By Hand
- The Loose End Of Strap Is Angle Cut For Easier Feeding Of Strap Thru Buckle
- A Grommet Is Installed Behind The Stitch And Is Used To Mount The Strap
- Standard Duty Spring Buckle For Light Commercial And General Applications
- Spring Buckle Is Made Of 304 Grade Stainless Steel

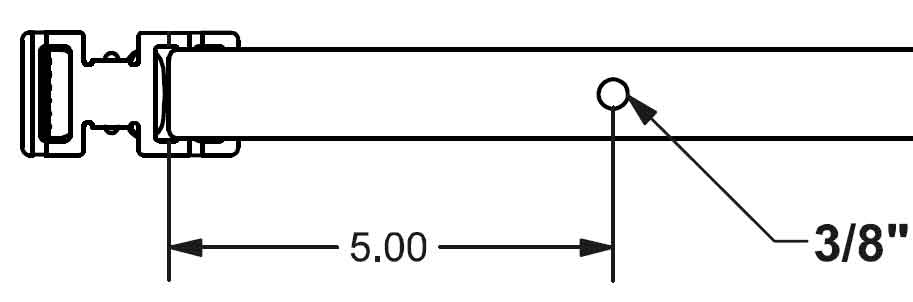

- Size #2 Grommet Has An Inside Diameter Of 3/8 Inch
- Grommet Is Made Of Brass And Has The Standard Gold Brass Color
- Strap Is Made With Heavyweight Polypropylene Webbing
- Sewn With Silver Polyester Thread
- Strap Length Is Measured As Only The Webbing Portion From The Back Of The Buckle To The Tip Of The Loose End Of The Webbing
- Sewn In The Standard Method To Meet The Provided Strength Rating
- Sewn With The Standard Tie-down Stitch
- No Strap Tag Or Labeling On The Product
- No Instruction Sheet
- Banded Together In Packs Of 10
Component specifications
Component strengths
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CW15-K12PP | 1.5 Inch Heavyweight Black Polypropylene Webbing | 1,200 lb | 400 lb |
| CSB15S-3C | 1.5 Inch Stainless Steel Spring Buckle | 300 lb | 100 lb |
Safety information
Special warnings
- Spring Buckles Require That The Strap Be Fed Through The Teeth From Bottom To Top In Order To Properly Hold The Strap After Tightening. NEVER Load The Strap Through The Teeth From Top To Bottom, It Will Not Hold To The Proper Strength
Additional views

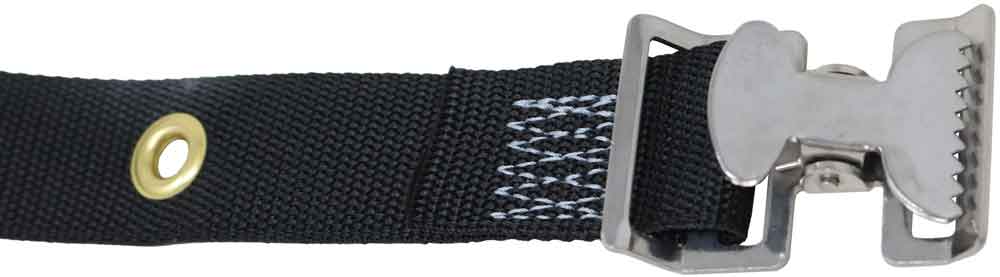

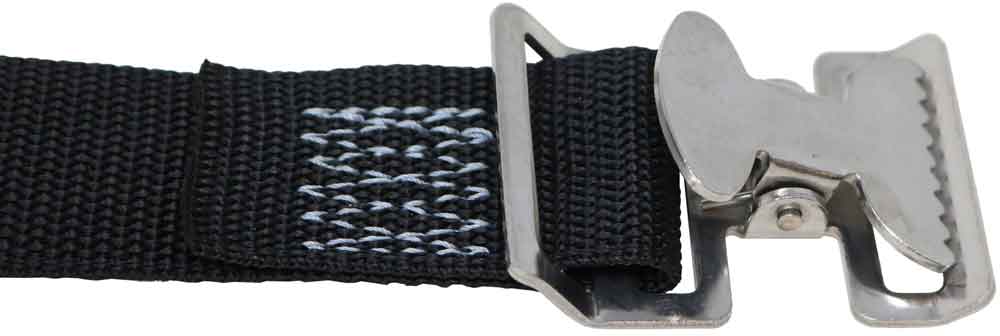

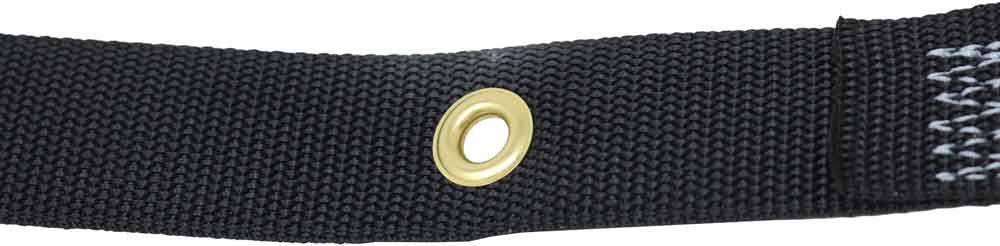

Product images
