Complete your order
Pricing & ordering
Choose your quantity and add this customized configuration to your cart.
$7.59 Each
10+ = $6.80
50+ = $6.13
Product at a glance
Details & specifications
1 Inch Side Release Tie-Down
Components & materials
- Black Plastic Side Release Buckle, Male Clip Includes A Built In Strap Adjuster
- CW1-R8PP 1 Inch Heavyweight Red Polypropylene Webbing
Dimensions
- Product weight: 0.16 lb
- Fixed End 1 Ft (12 Inches)
- Adjustable Strap 5 Ft
- Total Strap Length 6 Ft (72 Inches)
Additional details

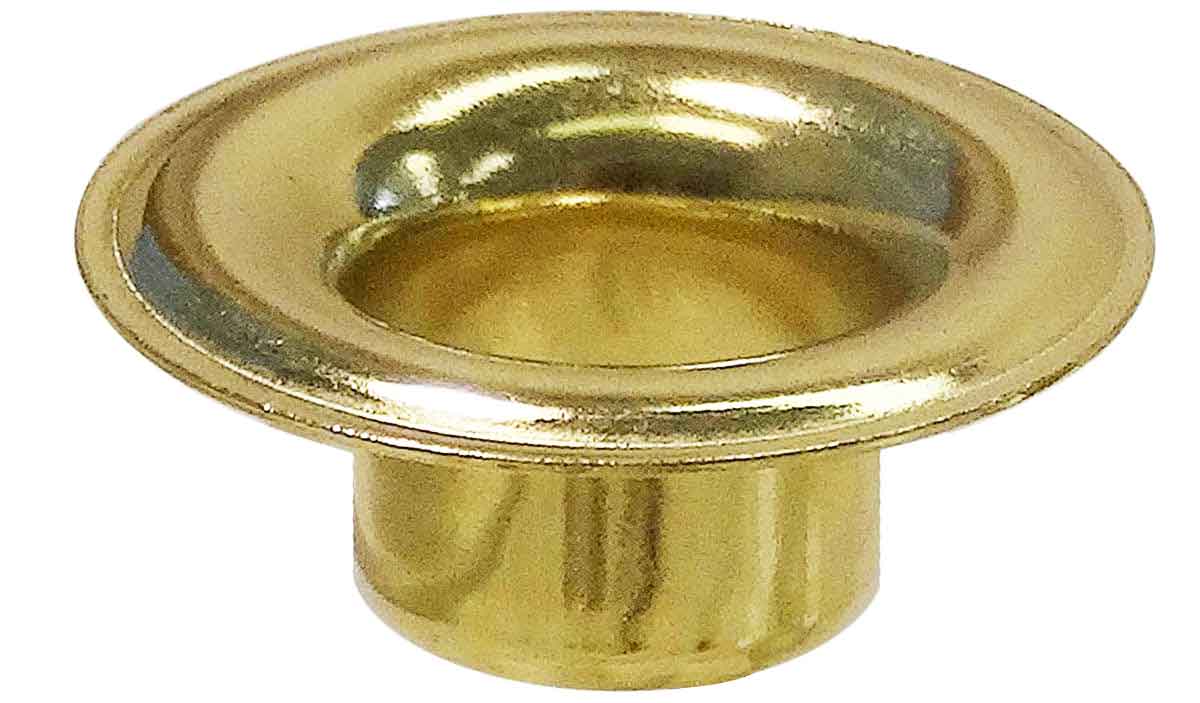

- CG1B Size #1 5/16 Inch ID Brass Grommet on both ends
Product notes
- Tie-downs, Side Release Tie-down, Grommet On Both Ends
- Side Release Buckle Tie-down Configuration, Adjustable Male Clip, Fixed Female Clip, Grommet Installed On Each End
- Side Release Buckles Are Made Up Of A Male And Female Clip That Press Into Each Other, To Release, The Sides Are Pressed In And Pulled Apart
- The Male Clip Of This Product Has A Built In Strap Adjuster That Allows For The Length And Tighteness To Be Adjusted On This Product
- The Female Clip Is Sewn On The Fixed End And Is Not Adjustable
- The Grommet On Each End Is Positioned So The Center Of The Grommet Is 3/4 (0.75) Inch From The End Of The Strap End Of Each Strap
- Light Duty Side Release Buckle For Light Commercial And General Applications
- Side Release Buckle Is Made Of Black Plastic Material
- Size #1 Grommets Have An Inside Diameter Of 5/16 (0.3125) Inch
- The Grommets Are Made Of Brass And Have The Brass/bronze Color Finish
- Strap Is Made With Heavyweight Polypropylene Webbing
- Sewn With Silver Polyester Thread
- Strap Lengths Are Measured Tip To Tip Of The Webbing, The Buckle Is Not Included In The Measurement
- Sewn In The Standard Method To Meet Provided Strength Rating
- No Strap Tag Or Label On The Product. Not Labeled For D.O.T. Applications
Component specifications
Component strengths
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CW1-R8PP | 1 Inch Heavyweight Red Polypropylene Webbing | 800 lb | 267 lb |
| CSRPAM1K-2C | 1 Inch Black Plastic Male Side Release Clip With Built-in Strap Adjuster | 200 lb | 67 lb |
| CSRPF1K-2C | 1 Inch Black Plastic Female Side Release Clip | 200 lb | 67 lb |
Safety information
Special warnings
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
Additional views
Product images
Compare your options
Available Product Variations
There are no additional product variations currently available.
For help finding another option, contact customer service at sales@customtiedowns.com or 1-877-360-5528.
