PRODUCT NUMBER: 12746

PRODUCT MODEL: 12746-RD5.67
Customize
×

Buckle Variations

Customize
×

Buckle Variations

×

Custom Imprinting For Product 12746

Details:

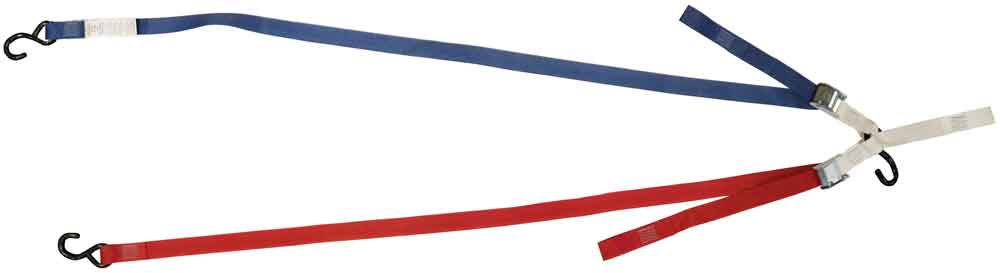

  • 1.5 Inch 3-Point Cambuckle Tie Down
  • Custom Printed Strap Tag
  • CB15Z-1M 1.5 Inch Cam Buckle, Zinc-Silver
  • Combination CHS1V-3M vinyl coated s hook with 10 inch Soft Loop on Fixed End, each Adjustable strap has CHS1V-3M Vinyl coated S Hook on the end and a 3 inch sewn-in pull loop
  • Total Strap Length 5.67 Ft (68 Inches)
  • CW15-RD4PE 1.5 Inch 4M Dark Red Polyester Tie-Down Webbing
  • 1500 lb Break Strength
  • 500 lb Working Load Limit
  • Assembled in the USA
Product Weight: 2.62 lb
$34.19 Each
10+ = $31.07
50+ = $28.04

Looking for Reseller or Volume Pricing? Give us a call at 1-877-360-5528

PRODUCT NOTES:
  • Tie-downs, 3 Point Tie-down, S Hooks On One End, S Hook With Soft Loop On Opposite End
  • 3 Point Utility Cam Buckle Tie-down Configuration, Also Called A Y-strap For Its Shape, Allows The Operator To Anchor The Tie-down In Three Locations For Added Securement
  • Cam Buckle Sewn On Two Straps For Tightening
  • Cam Buckles Are Hand Tightened, No Mechanical Tightening System
  • The Adjustable Strap Sewn Through Each Cam Buckle Has Sewn-in Pull Loope To Make Tightening Easier And To Prevent The Strap From Being Removed From The Buckle
  • An S Hook Is Sewn On The End Of Both Adjustable Straps
  • The Fixed End Side Of Each Cam Buckle Is Sewn To A Common S Hook Forming The Three Points
  • One Cam Buckle Fixed End Has A Soft Loop Extension With Flat Sewn Loop To Connect Back To The Shared Fixed End S Hook
  • Commercial Duty Cam Buckle For Great Strength And Durabiity
  • Cam Buckle Is Made Of Steel And Has Zinc-silver Plating On The Frame And Zinc-silver Plating On The Trigger For Superior Weather Protection
  • Heavy Duty S Hook For The Highest Strength And Durability
  • S Hooks Are Made Of Steel And Have A Black Vinyl Coating To Help Prevent The Hook From Scratching Its Surroundings
  • S Hooks Are The Standard S Hook Configuration, One Closed End, One Open Hook End. The Open Hook End Has A Diameter Larger Than 1 Inch To Fit Over A 1 Inch Diameter Bar Such As A Handlebar
  • Strap Is Made With 4500 Lb Polyester Tie-down Webbing
  • Sewn With Silver Polyester Thread
  • Strap Lengths Are Measured As The Webbing Only, Cam Buckle And Hooks Are Not Included In The Measurements
  • Sewn In The Standard Method To Meet The Provided Strength Rating
  • 4 Inch Fixed End Strap Length Between Cam Buckles And Common S Hook, 10 Inch Soft Loop Length Extending After The Common S Hook
  • Custom Printed Strap Tag With Customer Information Sewn Next To The S Hook On The Blue Adjustable Strap
COMPONENT STRENGTHS:
Model Component Break Strength WLL
CW15-RD4PE 1.5 Inch 4M Dark Red Polyester Tie-Down Webbing 4,500 lb 1,500 lb
CW15-BD4PE 1.5 Inch 4M Dark Blue Polyester Tie-Down Webbing 4,500 lb 1,500 lb
CW15-WC4PE 1.5 Inch 4M White Polyester Tie-Down Webbing With Clear Coat 4,500 lb 1,500 lb
CHS1V-3M 3M S Hook, Black Vinyl Coated 3,000 lb 1,000 lb
CB15Z-1M 1.5 Inch Cam Buckle, Zinc-Silver 1,500 lb 500 lb
SPECIAL WARNINGS:
    There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
