PRODUCT NUMBER: 11140

PRODUCT MODEL: 11140-BD5-3
Custom built for you

Built your way.

Choose an option to tailor this product to your needs.

Your selections update this product before you add it to cart.

11140-BD5-3

Custom built for you

Built your way.

Choose an option to tailor this product to your needs.

Your selections update this product before you add it to cart.
×

Custom Imprinting For Product 11140

There was a problem preparing the imprint product. Please contact customer service for assistance.

Complete your order

Pricing & ordering

Choose your quantity and add this customized configuration to your cart.

$21.19 Each

Product at a glance

Details & specifications

Break strength 3000 lb
Working load limit 1,000 lb

2 Inch Cam Buckle Tie Down

Components & materials

  • CB2-3M 2 Inch Cam Buckle, Zinc-yellow
  • CW2-BD6PE 2 Inch 6M Dark Blue Polyester Tie-Down Webbing

Dimensions

  • Product weight: 1.86 lb

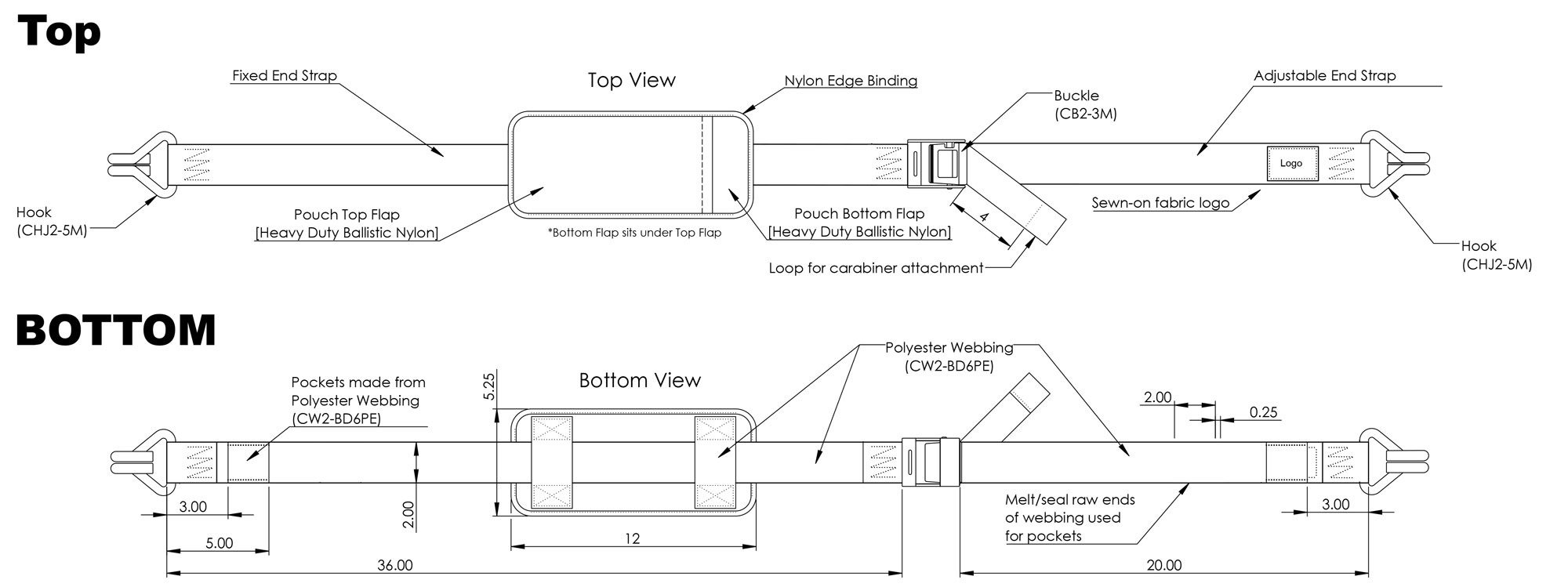

  • Fixed end has a CHJ2-5M Double J Wire Hook, hook facing down, 2 inch sewn-in tube, adjustable pouch, Adjustable strap has a CHJ2-5M Double J Wire Hook, hook facing down, 2 inch sewn-in tubeh and a sewn-in pull loop
  • Fixed End 3 Ft (36 Inches)
  • Adjustable Strap 2 Ft (24 Inches)
  • Total Strap Length 5 Ft (60 Inches)

Additional details

  • Custom Printed Strap Tag
Assembled in the USA
Product notes
  • Tie-downs, Cam Buckle Tie-down, J Hook On Both Ends
  • 1 Piece Cam Buckle Configuration Has A Fixed End Sewn To The Back Of The Buckle And An Adjustable Strap Permanently Fed Through The Buckle To Prevent Removal
  • Cam Buckle Tie-downs Are Pulled Tight By Hand, No Mechanical Tightening Mechanism
  • Product Has A Sewn-in Pull Loop On Adjustable Strap To Make Tightening Easier
  • Double J Hook Is Sewn On Both Ends Of The Tie-down
  • J Hooks Are Orientated, Hook Facing Down, Relative To The Buckle Lying Flat
  • Webbing Tube Sewn On The Underside Of The Strap Next To The Hook On Each End
  • Sliding Pouch Adjusts Along The Fixed End Strap
  • Utility Style Cam Buckle Is Designed To Have The Strap Pre-woven During The Assembly Process. The Strap Is Fed From The Middle Opening On The Bottom Of The Frame And Out Through The Teeth Of The Cam
  • Cam Buckle Is Made Of Steel And Has A Zinc-yellow Plated Frame. The Cam Trigger Has A Zinc-silver Plated Finish
  • Commercial Duty Double J Hooks Provide Great Strength And Durability
  • J Hooks Are Made Of Steel And Have A Zinc-yellow Plated Finish For Superior Weather Protection
  • Double J Hook Has The Standard Hook Configuration
  • Strap Is Made With 6000 Lb Polyester Tie-down Webbing
  • Sewn With Silver Polyester Thread
  • Strap Lengths Are Measured As The Webbing Portion Only, The Cam Buckle And Hooks Are Not Included In The Measurement
  • Sewn In The Standard Method To Meet Listed Strength Rating
  • Custom Printed Strap Tag Sewn On The Hook End Of The Adjustable Strap
Component specifications

Component strengths

Model Component Break Strength WLL
CW2-BD6PE 2 Inch 6M Dark Blue Polyester Tie-Down Webbing 6,000 lb 2,000 lb
CHJ2-5M 2 Inch 5M Double J Wire Hook, Zinc-Yellow 5,000 lb 1,667 lb
CB2-3M 2 Inch Cam Buckle, Zinc-yellow 3,000 lb 1,000 lb
Safety information

Special warnings

There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.

Additional views

Product images

Additional view 1 of product 11140-bd5-3
Compare your options

Available Product Variations

There are no additional product variations currently available.

For help finding another option, contact customer service at sales@customtiedowns.com or 1-877-360-5528.

PRODUCT MODELING
Top = 1 arrow_forward Group = 2 arrow_forward Layout = 15 arrow_forward Config = 4321 arrow_forward Family = 4566 arrow_forward Type = 11140
