Details:
- 1 Inch Double Ratchet Tie-Down
- No Strap Tag
- Endless Loop Strap on the Fixed end, CHJ1-3M Double J Wire Hook, hook facing down, with sliding CHD1-3M D Ring on the adjustable strap
- Fixed End 6 Ft
- Adjustable Strap 6 Ft
- Total Strap Length 12 Ft (144 Inches)
- CW1-Y3PE 1 Inch 3M Yellow Polyester Tie-Down Webbing
- 2500 lb Break Strength
- 833 lb Working Load Limit
- Assembled in the USA
Product Weight: 2.21 lb
$18.09 Each
10+ = $16.39
50+ = $14.79
Looking for Reseller or Volume Pricing? Give us a call at 1-877-360-5528
PRODUCT NOTES:
SPECIAL WARNINGS:
- Tie-downs, Double Ratchet Tie-down, No End Fitting On One End, Combo D-ring With J Hook On Opposite End
- Two Part Double Ratchet Strap, Made Up Of A Fixed End And Adjustable Strap. Adjustable Strap Is Separate From The Double Buckle Side And Is Fed Thru A Ratchet Spindle And Tightened During Use

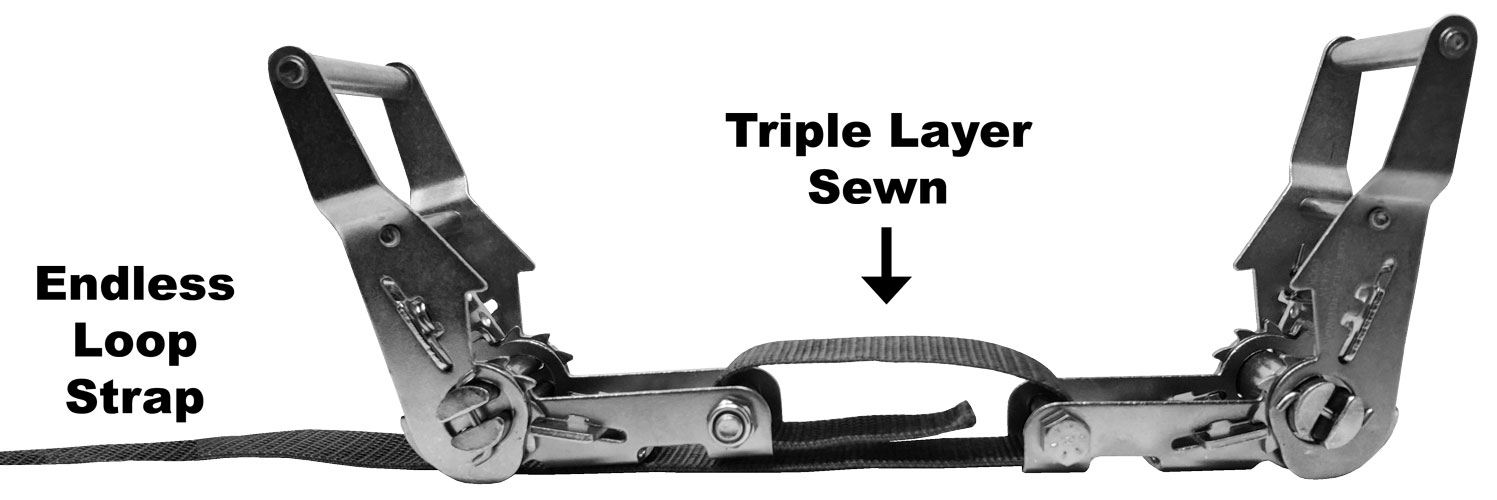

- The Double Buckle Configuration Is Created By Sewing Two Ratchets Back To Back With A Short Strap So That Both Ratchet Spindles Can Be Used
- Fixed End Is Configured As An Endless Loop Strap Where The Strap Is Wrapped Around An Anchor Point And Fed Through A Ratchet To Be Tightened
- The Adjustable Strap Has A Combination Doubele J Hook And Sliding D-ring
- The Sliding D-rings Can Be Adjusted Up And Down The Strap
- Most Commonly, The J Hook End Is Wrapped Around An Anchor Point, Then The J Hook Is Hooked Into The D-ring And The Strap Is Tightened. The J Hook To D-ring Combination Allows The Strap To Tighten Around The Anchor Point In A Slip Knot Style Action
- Heavy Duty Ratchets For The Highest Strength And Durability Available In The 1 Inch Size
- Ratchets Are Made Of Steel And Have A Zinc-yellow Plated Finish For Superior Weather Protection
- Ratchet Has The Standard Single Locking Configuration
- Ratchet Has A Wide Handle That Makes Operation Easier While Wearing Gloves
- J Hooks And D-rings Are The Heavy Duty Version For The Highest Strength And Durability
- Double J Hooks Are Made Of Steel And Have A Zinc-yellow Plated Finish For Superior Weather Protection
- J Hooks Are The Standard Double J Configuration. The Width Of The Hook Tip Is 0.58 Inch
- D-rings Are Made Of Steel And Have A Zinc-yellow Plated Finish For Superior Weather Protection
- D Ring Is Formed Out Of Wire And Welded Along The Flat Side Of The D-shape
- Strap Is Made With 3000 Lb Polyester Tie-down Webbing
- Sewn With Silver Polyester Thread
- Strap Length Is Measured As The Webbing Portion Only, The Buckle And Hooks Are Not Included In The Measurement
- Sewn In The Standard Method To Meet The Provided Strength Rating
- Small Strap Sewn Between Ratchets Measures Approximately 3 Inches
- No Strap Tag Or Labeling On The Product
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CW1-Y3PE | 1 Inch 3M Yellow Polyester Tie-Down Webbing | 3,000 lb | 1,000 lb |
| CHD1-3M | 1 Inch 3M Wire D Ring | 3,000 lb | 1,000 lb |
| CRW1-3M | 1 Inch Ratchet With Wide Handle | 3,300 lb | 1,100 lb |
| CHJ1-3M | 1 Inch 3M Double J Wire Hook, Zinc-Yellow | 3,000 lb | 1,000 lb |
-
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.
