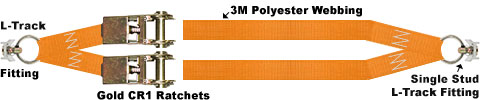

Product assembly
See how it comes together
A visual breakdown of the components in this configuration.
Complete your order
Pricing & ordering
Choose your quantity and add this customized configuration to your cart.
$30.59 Each
10+ = $27.79
50+ = $25.08
Product at a glance
Details & specifications
Break strength
1500 lb
Working load limit
500 lb
1 Inch Double Ratchet Strap
Components & materials
- CW1-O3PE 1 Inch 3M Orange Polyester Tie-Down Webbing
Dimensions
- Product weight: 2.1 lb
- Fixed End 0.67 Ft (8 Inches)
- Adjustable Strap 15 Ft
- Total Strap Length 15.67 Ft
Additional details
- CR1K-1M 1 Inch Black Ratchet With Standard Handle
- Silver CFLSSOR1Z-4M Single Stud L-track Fitting with O-ring On Each End
Product notes
- Tie-downs, Double Ratchet Tie-down, L-track Fitting On Both Ends
- Two Part Double Ratchet Strap, Double Ratchet Straps Have Two Complete Ratchet Straps That Share A Common Fitting On Each End
- Each Ratchet Has It Is Own Fixed End Strap And Adjustable Strap. The Adjustable Strap Is Separate From The Buckle Side And Is Fed Through The Ratchet Spindle And Tightened During Use
- There Is An L-track Fitting Shared On The End Of The Fixed Straps And Adjustable Straps. L-track Fittings Fit The L-series Logistic Track
- CR1 Series Is A Commercial Grade Ratchet And Is The Most Compact Ratchet Available
- Ratchet Is Made Of Steel And Has A Black Resin Finish
- Ratchet Has The Standard Single Locking Configuration
- Ratchet Has A Standard Thumb Handle, The Smallest Ratchet Handle Available
- The L-track Fittings Have A Welded-in O-ring And Are A Single Stud Style, They Only Connect To One Slot In The L-track
- The L-track Fitting Has A Zinc-yellow Ring, Post And Stud. The Frame Of The L-fitting Can Be A Few Different Colors, Silver Being The Most Common
- Strap Is Made With 3000 Lb Polyester Tie-down Webbing
- Sewn With Silver Polyester Thread
- Strap Lengths Are Measured As Only The Webbing Portion, Buckle And L-fittings Are Not Included In The Measurement
- Standard Sewing Configuration To Meet The Provided Strength Rating
- No Strap Tag Or Labeling On The Product
- No Instruction Sheet Included
Component specifications
Component strengths
| Model | Component | Break Strength | WLL |
|---|---|---|---|
| CW1-O3PE | 1 Inch 3M Orange Polyester Tie-Down Webbing | 3,000 lb | 1,000 lb |
| CFLSSOR1Z-4M | Single Stud L-Track Fitting With O-ring, Zinc-Silver | 4,000 lb | 1,333 lb |
| CR1K-1M | 1 Inch Black Ratchet With Standard Handle | 1,500 lb | 500 lb |
Safety information
Special warnings
There are no special warnings for this product. Please see our Safety Warnings page for standard product warnings.

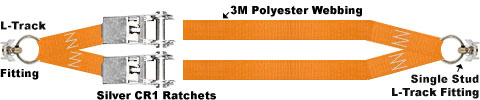

Additional views
Product images
Compare your options
Available Product Variations
Browse the default product for each available product type in this family. Color, length, and material can be adjusted on the product page.
